Allegro

Allegro Sonata 150 Compact Lifting Hoist

Allegro Sonata 150 Compact Lifting Hoist

SKU:LA0250

Regular price $4,490.00
Sale price $4,490.00 Regular price
Sale Available on Order
Tax included. Shipping calculated at checkout.
View full details

Features

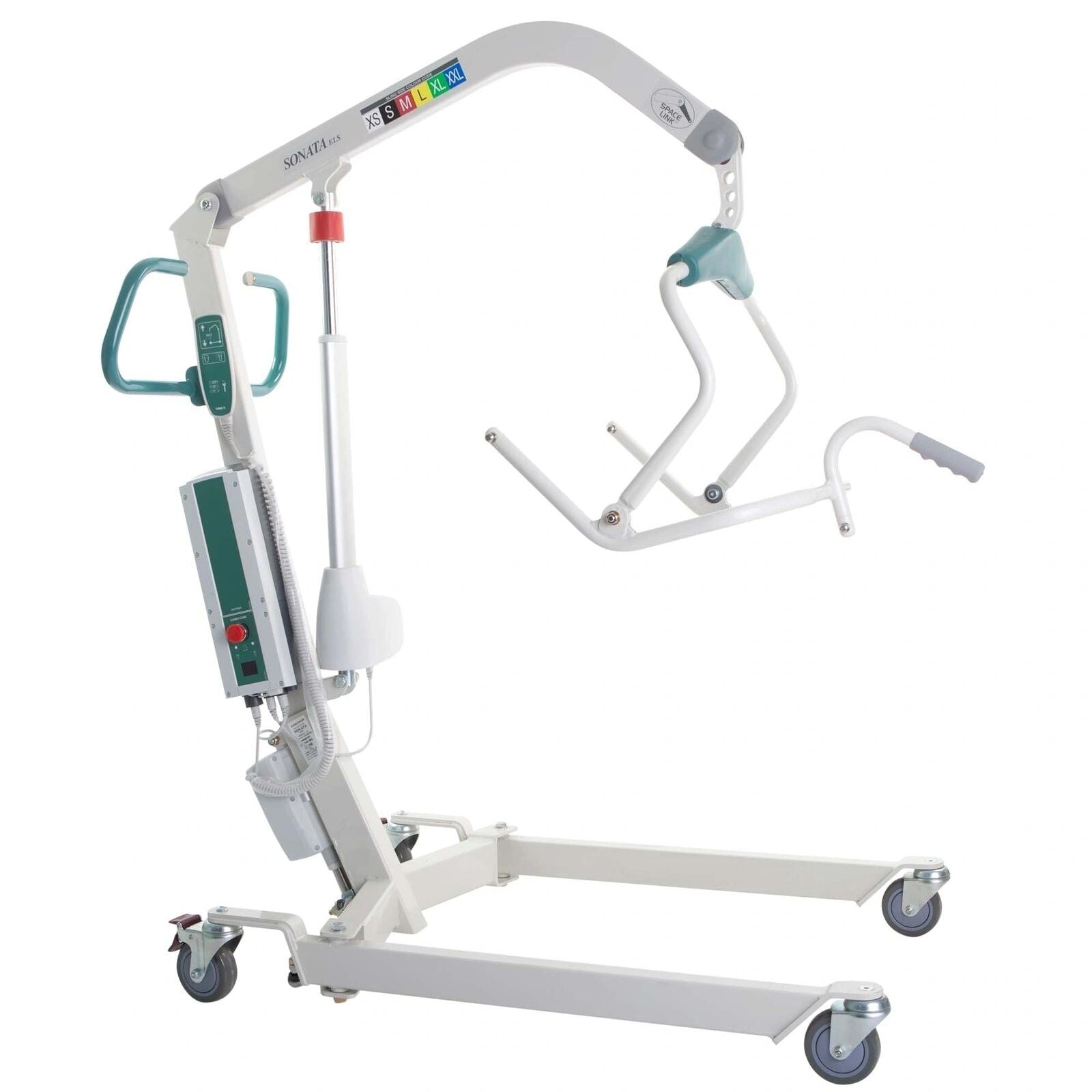

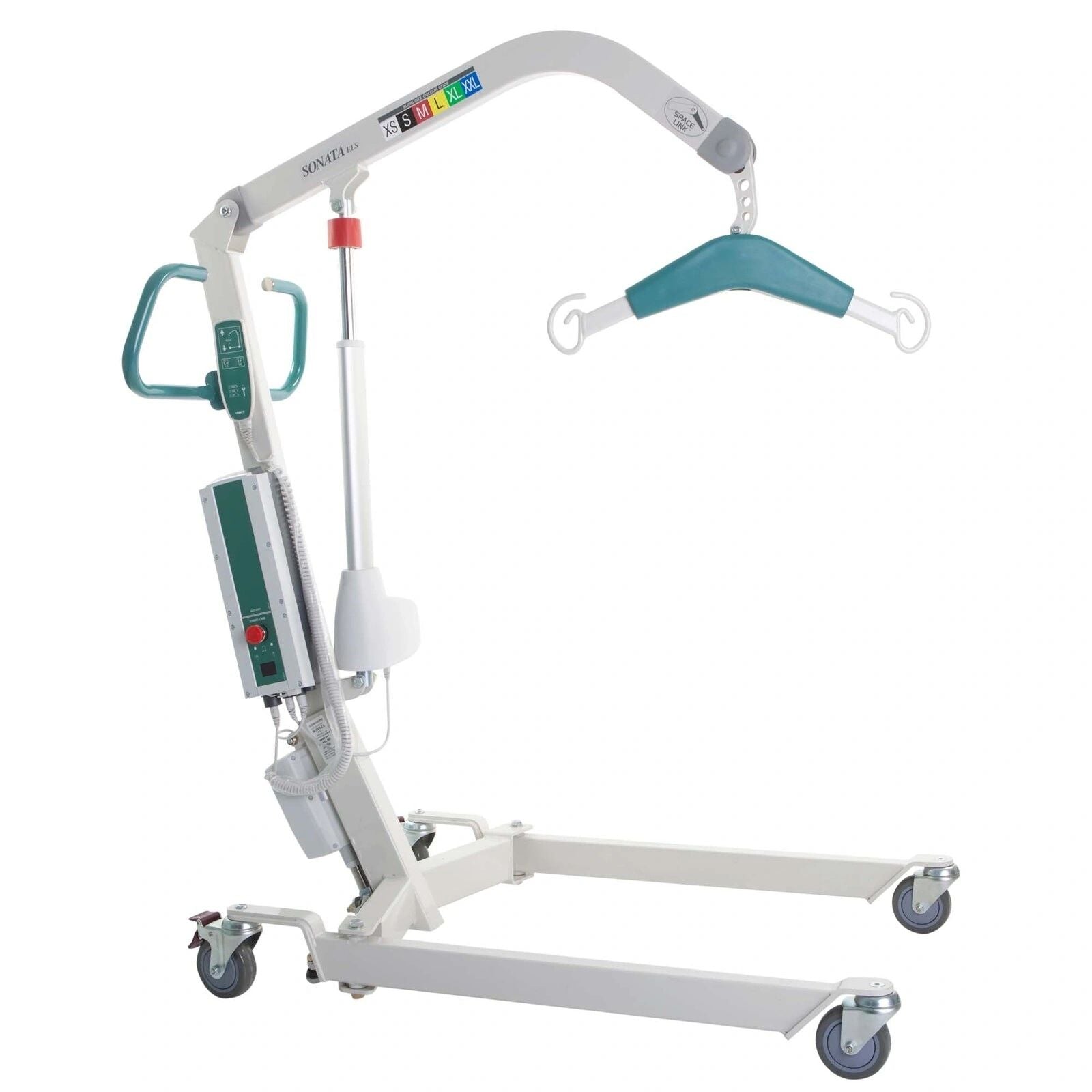

The Allegro Sonata 150 is a compact mobile patient lifting hoist intended for domestic use, or as a lightweight lifter in institutional care, with a safe working load of 150 kg. A powered actuator built with LINAK components raises and lowers the yoke between 42 cm and 173.5 cm, so a patient supported in a sling can be lifted from the floor, a bed or a chair with the one machine. Allegro's SPACE LINK geometry creates more room for the patient than the small footprint suggests, and allows the patient to be rotated through 360 degrees at full lift height rather than the hoist being repositioned part way through a transfer. The legs open from 60.5 to 107 cm externally to pass around chairs and bed frames, by three-position manual adjustment or by powered control on the electric leg spread model.

Key Features

  • Safe working load: Rated for patients up to 150 kg.
  • SPACE LINK geometry: Provides generous patient space within a compact frame.
  • Full rotation at height: The patient can be turned through 360 degrees at full lift height without the hoist being moved.
  • Wide lift range: Yoke height from 42 to 173.5 cm covers lifting from the floor, a bed or a chair.
  • Adjustable base width: External width from 60.5 cm closed to 107 cm open, by three-position manual adjustment or electric leg spread.
  • Low base profile: Under-bed clearance of 13 cm and leg height of 5.5 cm allow access beneath most bed bases.
  • Compact storage: Folds down to a storage height of 126 cm, with a total hoist weight of 41 kg.

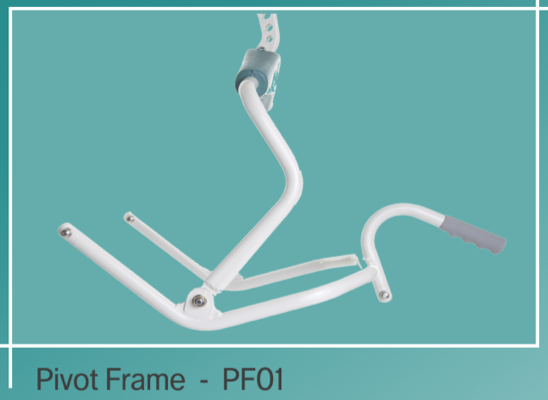

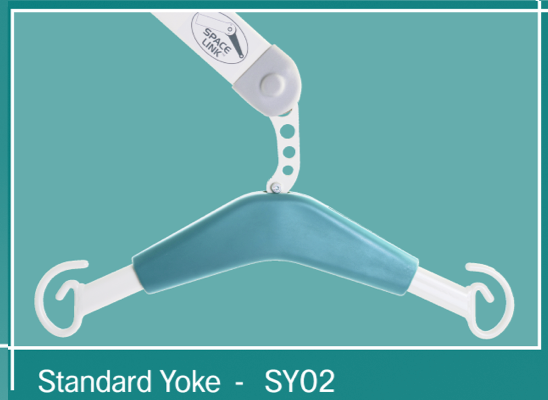

  • Attachment options: Padded spreader bar, Allegro pivot frame, tri hook yoke, four point yoke and weighing device.

Why We Choose It

The combination of a small footprint and generous patient space makes this hoist practical in a home where a larger lifter will not fit, while still covering floor, bed and chair transfers. Powered leg spread is worth considering where a carer works alone or on carpet, and the 41 kg frame breaks down to a 22 kg heaviest part for transport.

Specifications

  • Overall Width: 60.5 - 107 cm
  • Overall Depth: 100.5 cm
  • Overall Height: 42 - 173.5 cm (lift range)
  • Maximum User Weight: 150 kg
  • Product Weight: 41 kg
  • Base closed: 60.5 cm external / 51 cm internal
  • Base open: 107 cm external / 97.5 cm internal
  • Folded height: 126 cm
  • Under-bed clearance: 13 cm
  • Leg height: 5.5 cm
  • Max reach: 87.5 cm
